Welcome To Tajalli Tech Pvt Ltd
Cable Fault Locating Service
Underground Cable Fault Locating Services
- High voltage cables. (Up to 33KV)
- Low voltage electricity cables
- Communication/Data cables

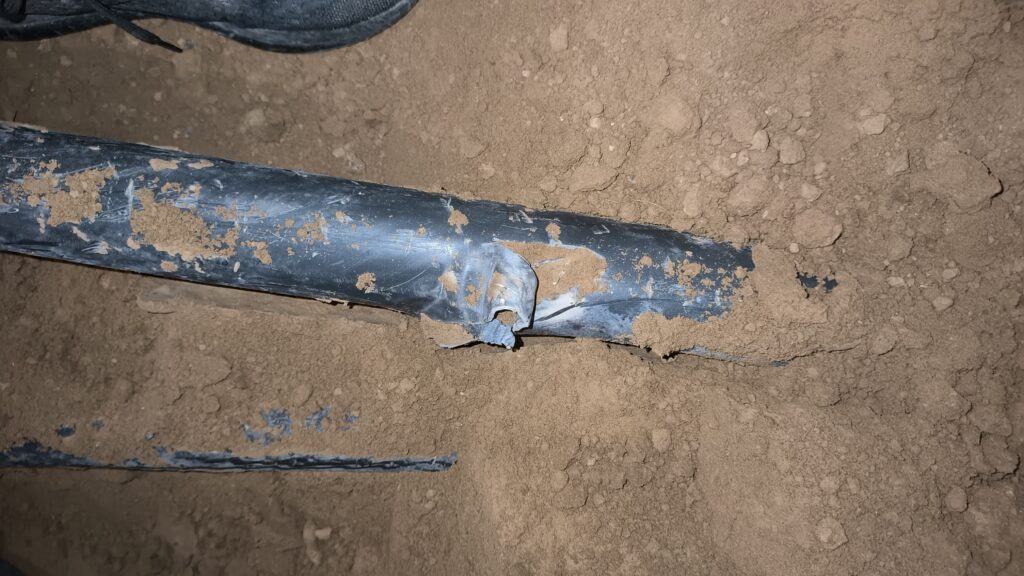

Basically, it’s a hole, or a crack, burning through the cable.
Underground cable faults can present themselves as a minor inconvenience to private dwellings or a major — and expensive — problem to locate and rectify for commercial and industrial facilities. Our engineer can significantly reduce any problems associated with cable faults by utilizing advanced radio detection locators to locate down to earth cable faults and pinpoint exactly where the fault it. Our radio detection locators allow us to obtain information about the exact location and depth of the fault without placing over stress on the cable. We’re also equipped to handle multiple cable faults at one time.
We understand your urgency and make it our priority to be on site quickly, pinpointing the cable fault and enabling you to resume operation with minimal business interruption. Whether your cables are underground, buried, concealed on cable trays and ladders… if there’s any kind of fault or discontinuity, our specialized equipment can find it. An unexpected blackout due to a cable failure and the associated downtime can cost businesses thousands of rupees per hour. Take the guesswork out of it and call Electrical Testing Company to locate that mysterious cable fault. Using modified “Murray Loop”, Time Domain Reflectometer [TDR], “Popeye” & “Thumper” and the benefit of years of experience, Our Company in most cases pinpoint the trouble spot.
Why Should You Choose Us?
- We provide best service at affordable cost.
- We can locate Low voltage, High voltage as well as communication cable without over stressing the cable.
- We apply voltage according to the cable rating without damage the insulation of your cable.
- Our equipment’s are highly precise which can locate the fault distance withinfewmeters in minimum time.
Technical Specification of Fault Locator
- High precision adopts high-speed sampling technique, A/D sampling speed is 100MHz.
- Directly display the direct distance or relative distance between fault point and measured point.
- Test distance: Longest measured distance is 32km (100km for open wire)
- Detection blind area: 1m
- Reading resolution: 1m
- Test methods: low voltage pulse method, impulse lightning current method and direct lightning current method
Underground cable fault locating
We find underground cable faults fast, so you dig once
When an underground cable fails, every hour without power costs money, and digging up the wrong stretch of road costs more. Our engineers first pre-locate the fault with a TDR, then pinpoint it with a surge generator and acoustic receiver, so the excavation is done at the right spot.
We locate faults on LT and HT cables up to 33 kV for factories, hospitals, housing societies, campuses and utilities across Uttar Pradesh.
What our cable fault service includes
- Fault type analysis with insulation resistance test
- Cable route tracing where the route is unknown
- Pre-location with TDR (time domain reflectometer)
- Pinpointing with surge generator and acoustic receiver
- Marking the exact digging point
- Supervision of jointing after repair
- HiPot (DC withstand) test before re-energising
- Written report of fault location and test results
Common cable faults we locate
| Fault | Typical cause |
|---|---|
| Low-resistance (short circuit) | Joint failure, mechanical damage during digging |
| High-resistance or flashing fault | Moisture entry, ageing insulation |
| Open conductor | Cable cut or burnt-out joint |
| Sheath fault | Damage to the outer sheath that will lead to failure later |
How we work
1
Call
You call us with the cable size, length and voltage.
2
Pre-locate
IR test and TDR to find the distance to the fault.
3
Pinpoint
Surge and acoustic pinpointing on the route.
4
Restore
Jointing support and HiPot test before switching on.
Why Tajalli Tech
Since 2016Class-A licensed electrical contractor based in Aliganj, Lucknow.
Calibrated test kitsOur own instruments, with a written report after every job.
ISO 9001:2015Documented quality process, and a Schneider Electric EcoXpert partner for LV services.
Questions
How quickly can you reach the site?
We are based in Lucknow, so we can reach most sites in the city quickly. For other cities in Uttar Pradesh we plan the visit with you.
Do you locate faults in HT cables?
Yes. We locate faults in LT and HT underground cables up to 33 kV.
Do you also repair the cable?
Yes. Our team can make the cable joint or termination and test the cable before it is switched on. See cable laying and jointing.
What if we do not know the cable route?
We trace the route with a cable locator before pinpointing the fault.
Cable fault? Call us now
Tell us the cable voltage, size and approximate length. We will send a team with the right equipment.
